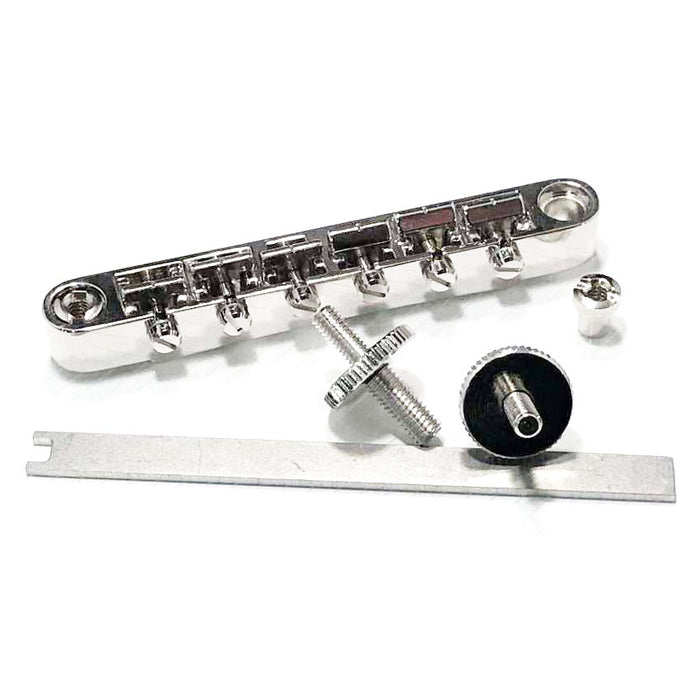

Faber 3031-0-NSW Tone-Lock Bridge “E-Z” Gloss Nickel
by Faber
$143.00
Light years ahead of the usual “set screw” method of locking a bridge to the studs, one look at our system will show its design superiority and how it actually can increase sustain!
Tone Lock Bridge
“E-Z” NSWKIT Bridge Posts
Tone Lock Bridge
- Alloy: 70% zinc, 30% aluminum
- Length: 3.31″/84.1mm
- Saddle radius: 12″
- Post spacing: 2.91″/74.0mm (0.8mm lock nut clearance to accommodate 73.6mm-74.4mm post spacing)
- Post hole diameter (stepped): upper, .293″/7.45mm; lower, .2165″/5.5mm
- String Spread (center-to-center, outer saddles): 2-1/16″/2.0625″/52.39mm
“E-Z” NSWKIT Bridge Posts
- Material: Studs, Steel, plated; Thumbwheels, Brass, plated
- Weight, pair: .462 oz./13.1g
- Overall length: .945″/24mm
- Lower portion: Thread pitch: 5M x .8, Length: .472″/12mm
- Upper portion: Thread pitch: 4M x .7, Length: .36″/9.2mm
- Thumbwheels: Diameter: .63″/16mm, Thickness: .11″/
Tone-Lock Lock Nuts, Pair of 4mm Lock Nuts
- A pair of Lock Nuts for Tone-Lock™ bridge, in 4mm
- Lock Nut/Tailpiece Stud Tool
